Name: High Purity 5n Zone-Refined Germanium Ingot
Availability: InStock

High Purity 5n Zone-Refined Germanium Ingot

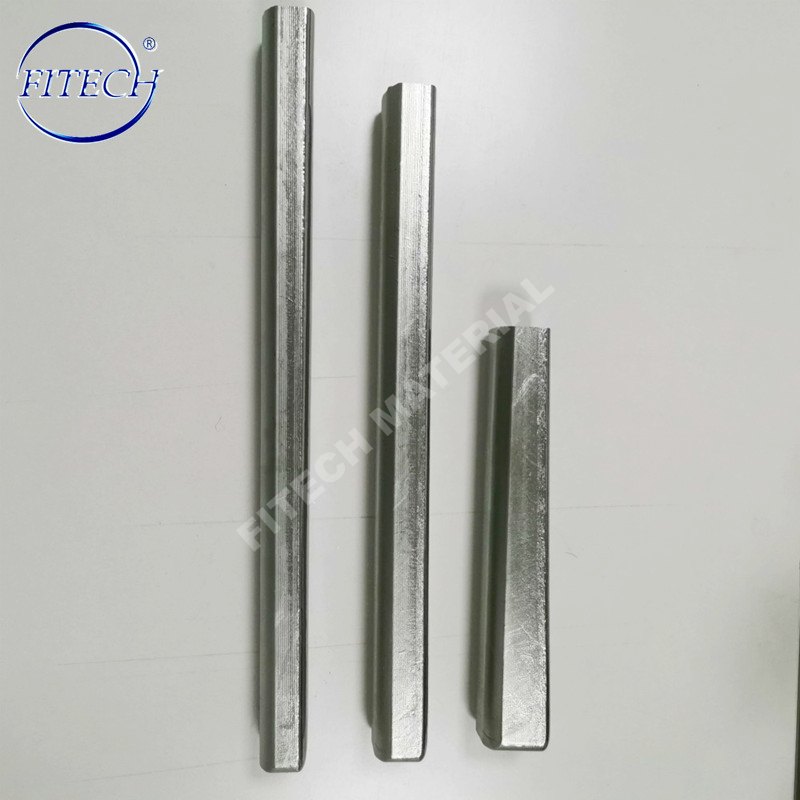

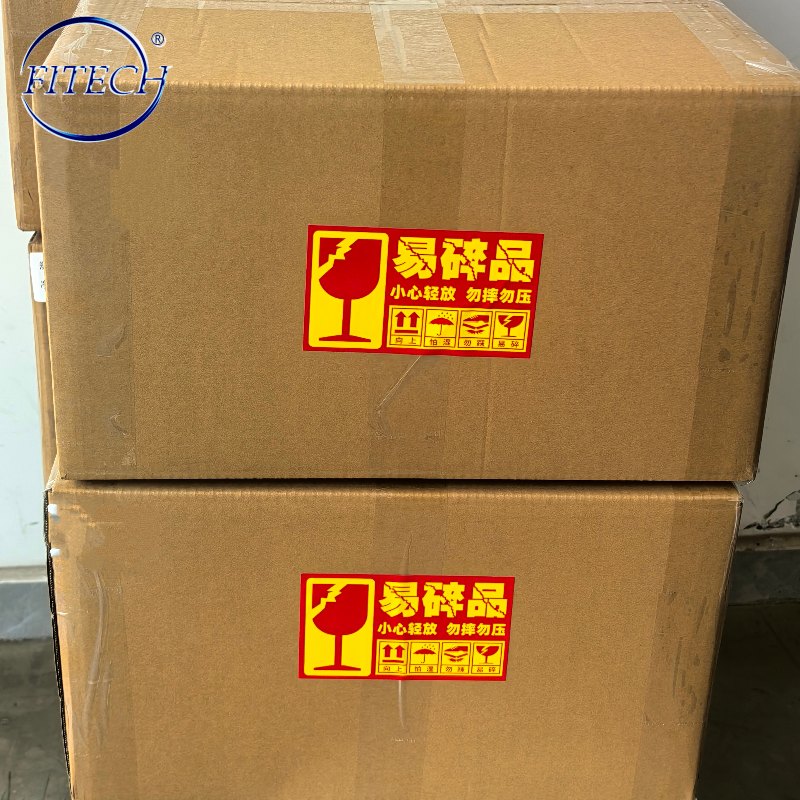

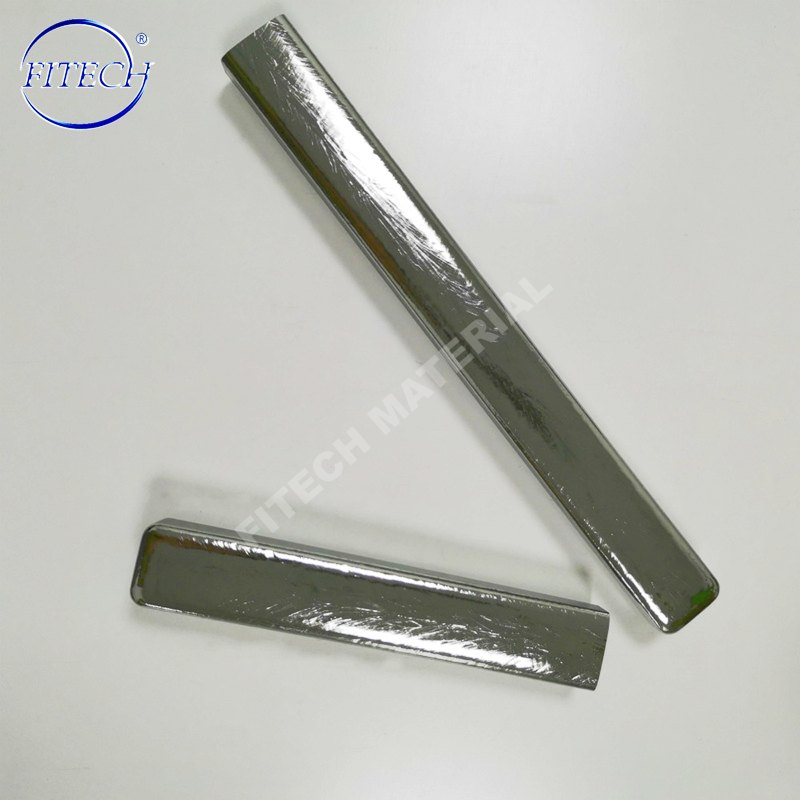

Ge content ≥ 99.999%, resistivity ≥ 50Ω • cm (20 ± 0.5 ℃). Silver gray metallic luster, cuboid bar shape, hard and brittle,melting point of 937.4 ℃, boiling point of 2800 ℃, density of 5.325g/cm3.Each ingot is about 100 ~ 500mm long, sealed in a polyethylene film bag, then packed in a polystyrene box, packed in an outer wooden box, and the net weight of each box is about 25kg.

Cas No. :
7440-56-4
Order(MOQ) :
10KG
Product Origin :
China
Color :
Silver gray
Lead Time :
60 days after receipt of payment
Sample :
Available
Loading port :
Shanghai

Product Details

Basic information

Germanium ingot is a high-purity metal material with germanium element as its core, with the chemical symbol Ge. It has a wide range of applications in semiconductor, infrared optics, solar cells and other fields. As an IVA group element, germanium has unique semiconductor properties with conductivity between metals and non metals. Its electrical properties can be adjusted through doping processes, making it an important foundational material for manufacturing diodes, transistors, and solar cells.

Specification

ITEM	STANDARD	MF:	Ge
Ge/%	≥99.999	MW:	72.64
Mg/ppm	≤0.5	Melting point:	937°C
Al/ppm	≤0.5	Boiling point：	2830°C
Ni/ppm	≤0.5	EINECE NO.：	231-164-3
Cu/ppm	≤0.5	Product Origin：	China
Si/ppm	≤0.5	Packaging：	25kg carton packing
Zn/ppm	≤0.5	Brand name:	FITECH
Cr/ppm	≤0.5	Grade:	99.999%
As/ppm	≤1.0	Appearance：	Silver gray Metal
Fe/ppm	≤0.5	HS code:	8112991000
